CVW PRO100HD Wireless HD long distance transmission
| หมวดหมู่ | WIRELESS VIDEO TRANSMISSION SYSTEM |
| ราคา | 36,000.00 บาท |
| ยี่ห้อ | CVW |
| รุ่น | PRO100 |
| สถานะสินค้า | พร้อมส่ง |
| ลงสินค้า | 4 เม.ย. 2561 |
| อัพเดทล่าสุด | 24 พ.ค. 2561 |
| คงเหลือ | ไม่จำกัด |
| จำนวน | pcs |
รายละเอียดสินค้า
The long distance transmission system applied with the high-capacity Li-battery, plug-and-play setting, are able to meet requirements of outdoor and indoor shooting.
PRODUCT FEATURES
1. Wireless HD Video transmission for DSLR / DV.
2. Support full-hd 1080P/60Hz video display with very low latency.
3. Full-hardware for plug & play, no software needed.
4. Up to 120m. effective range line of sight.
5. Support external Li-battery supply for mobile convenience.
6. Support Hot-shoe installation with 1/4 screw nut.
7. Support audio input from external microphone.
8. Hi-quality LCD screen display signal & battery status of product.
Transmitter Installation
1. Install antenna and rotate antenna clockwise
2. Adjust the antenna direction of transmitter.
3. Iistall battery. or connect the power adaptor to DC IN.and use DC power supply

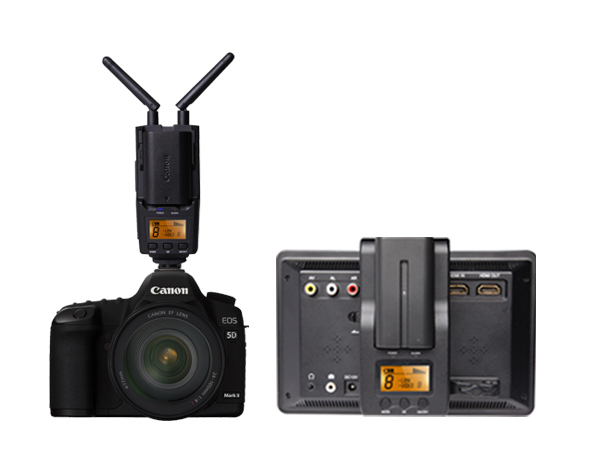

4. Install the transmitter to DSLR camera and rotate transmitter clockwise til you tighten it.Connect transmitter to DSLR camera via JDMI cable(as shown in figure)
5. Turn on the power of transmitter and DSL/DV
Receiver Installation
1. Install battery to receiver
2.Install receiver to monitor via HDMI cable,power on receiver and monitor.
*Not support charging the external battery*
Packing List
Please check the packing list carefully before installation,if any part is missing,please contact your retailer.
Accessories may by updated according to necessary without notification.If you have relativequestions,pleasecontact the local distributor.
TX:PRO100
RX:PRO100
Specifications
TX: PRO100
| Item | Data | Item | Data | ||
|
Operating Frequency |
5GHz |
Video Communication |
MIMO |
||
| Modulation Mode | OFDM | Frequency Stability | ±20PPM | ||
|
Bandwidth |
40MHz |
Standard Protocol |
HDMI1.3; HDCP1.2 |
||
|
Receiving Sensitivity |
≤ -70dBm |
Antenna |
2 External Antennas |
||
|
Transmission Distance |
Up to 120m Line of sight |
Transmission power |
14dBm |
||
|
Dimensions |
118mm (W) x 54mm (H) x 43mm (D) |
Power Supply |
DC(6V~17V);Li-battery(Canon LP-E6+; |
||
|
Temperature |
-10 °C~50°C |
||||
RX:PRO100
| Item | Data | Item | Data | ||
|
Operating Frequency |
5GHz |
Video Communication |
MIMO |
||
| Modulation Mode | OFDM | Frequency Stability | ±20PPM | ||
|
Bandwidth |
40MHz |
Standard Protocol |
HDMI1.3; HDCP1.2 |
||
|
Receiving Sensitivity |
≤ -70dBm |
Antenna |
Built-in Antenna |
||
|
Transmission Distance |
Up to 120m Line of sight |
Transmission power |
15dBm |
||
|
Dimensions |
118mm (W) x 60mm (H) x 45mm (D) |
Power Supply |
D LiC -b (6 aV tte ~r1 y7 (V SO );NY NP-F570/750/950) |
||
|
Temperature |
-10 °C~50°C; With Li-Battery:0~40°C |
||||
