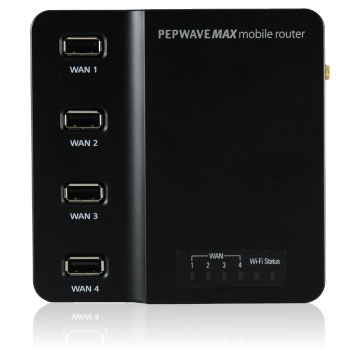

Pepwave Max On-The-GO U4 Load Balancing

Your USB Router

The MAX On-The-Go is compact and lightweight, and it supports more than 250 USB cellular modems, giving you maximum portability, wide compatibility, and high performance that goes wherever you go.

Quad USB for Superfast Streaming:

SpeedFusion WAN Smoothing minimizes latency and reduces the impact of packet loss. This is ideal for 3G applications such as video streaming and broadcasting.

Unparalleled Modem Compatibility:

Supports 250+ USB cellular modems from more than 100 carriers. Odds are, you can plug in and start surfing instantly. But if not, just connect your modem and turn on Remote Assistance – our engineers will get right to work on adding support for your modem.

USB Modem Support List

Compact and Powerful:

Take your mobile network anywhere. The MAX On-The-Go’s compact (4.3×4.3×1.2 inches), lightweight (0.43 pound) enclosure fits in your pocket, giving you a powerful mobile connectivity solution that’s always ready when you are.

InControl 2 is our cloud based device management, monitoring, and reporting tool designed specifically for Peplink and Pepwave devices.

Customizable Captive Portal:

Branding your captive portal is as easy as uploading your logo and terms & conditions. You can easily set bandwidth allowance and access duration per user or manage access using RADIUS server.

With Social Wi-Fi Hotspot support, you can also receive valuable demographic data from your users.

Learn more about Social Wi-Fi Hotspots >

Deployment Diagrams:

Broadcasting

First Responders

Applications:

First Responders – Unbreakable VPN for Mission-Critical Emergency Communication

SMBs – Landline Alternative for Construction Site and Remote/Temporary Workstation

Broadcasting and Media – Blazing Fast Video Broadcast on Multiple 4G LTE/3G Links



SPECIFICATION:

Model	MAX On-The-Go	MAX 700
Ethernet WAN Ports	1 (FE)	2 (GE)
Ethernet LAN Ports	1 (FE)	4 (GE)
USB WAN Modem Port	4	4
Wi-Fi WAN 1	*
Wi-Fi AP 1
Wi-Fi Standard	802.11a/n or /b/g/n 150Mbps	AP: 802.11a/b/g/n/ac 866Mbps WAN: 802.11a/b/g/n 300Mbps 2x2 MIMO
Transmit Power (2.4GHz)	20dBm	24dBm
Transmit Power (5GHz)	20dBm	22dBm
Recommended Users 2	1-25	1-50
Router Throughput 3	100Mbps	200Mbps
VPN Functionality
PepVPN/SpeedFusion Hot Failover
SpeedFusion WAN Smoothing	#
SpeedFusion Bandwidth Bonding
Number of PepVPN SpeedFusion Peers	2	2
PepVPN/SpeedFusion Throughput (No Encryption)	40Mbps	100Mbps
PepVPN/SpeedFusion Throughput (256-bit AES)	20Mbps	60Mbps
Central Management
InControl Cloud Management
GPS Fleet Management
AP Controller Functionality
Manage Pepwave AP Series
Maximum Number of AP Support		10
Hardware Features
Enclosure	Low-Profile, All-Purpose	Indoor Metal
PoE Output		Up to Four 802.3af PoE Outputs ^
Terminal Block Power Connector for Mobile/Vehicular Deployment
Dimensions (Height x Width x Depth)	1.2 x 4.3 x 4.3 inches 30 x 110 x 110 mm	1.6 x 10.2 x 5.7 inches 39.5 x 260 x 143 mm
Weight	0.43 pounds 195 grams	2.65 pounds 1.2 kg
Operations
Terminal Block		DC 12V - 48V DC, 3A
AC Adapter	AC Input 100V-240V DC Output 12V, 2A	AC Input 100V - 240V  DC Output 12V, 3A
Power Input	DC 12V - 48V 2A	DC 12V - 48V DC, 3A
Power Consumption	9W (without modems) 20W (max.)	25W (max.)
Operating Temperature	-14° – 149°F  -10° – 65°C	-40° – 149°F  -40° – 65°C
Humidity	15% – 95% (non-condensing)
Certifications
FCC, CE, RoHS
Certifications – Rolling Stock
EN 61373:1999 IEC 61373:1999 Shock and Vibration Resistance
Warranty	1-Year Limited Warranty
