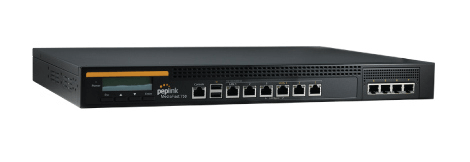

Peplink MediaFast 750B Content Caching Router

Content Caching Plus
Full Feature Set from the Balance

The MediaFast 200/500/750 comes with Load Balancing, AP Controller, and other enterprise features from the Balance family as well as our MediaFast content caching, offering a hassle free solution for campus connectivity.

500 iPads Downloading Media-Rich Content Concurrently? No Problem.

Located in a rural area with a large number of students and teachers? With MediaFast, you can download content just once and deliver it anytime, anywhere at blazing speed. Your network will continues to be up and running, and so as the class.
Learn more.

Effortless iOS Updates for All Students

Managing hundreds of iPads at your campus? MediaFast can cache iOS updates and app downloads. Download the updates once, and apply them to all the iPads without consuming extra bandwidth and stressing your network.

Reporting.
Deep Insight. On-Demand.

Check bandwidth usage and savings. Track popular URLs and file types. Monitor client IP addresses, find your heaviest users, and more, all from a single intuitive interface.

Complete Solution

Connect your MediaFast with Pepwave Access Points, a single AP supports more than 50 concurrent connections. Cover your campus with Wi-Fi and cached content with our wide range of AP products.
Need to deploy AP devices all over the campus? No worries.
Learn more about our:
AP Controller – the AP Management software built into the MediaFast.
InControl 2 – the cloud based monitoring and management platform.

SPECIFICATION



	Branch Office/Hotspot	School/Campus
Model	Balance with MediaFast 200	Balance with MediaFast 500	Balance with MediaFast 750	Balance 580	Balance 710
Product Code	MFA-200-W	MFA-500-B	MFA-750-B	BPL-580	BPL-710
Recommended Users	25-150	300-1000	500-2000	300-1000	500-2000
Capacity
Disk Drive	120GB SSD	500GB SSD	1TB SSD
Cache Throughput2	200Mbps	1.5Gbps	2.5Gbps
Router Throughput3	200Mbps	800Mbps	1.5Gbps	1.5Gbps	2.5Gbps
Ethernet WAN Ports	2	5	7	5	7
Ethernet LAN Ports	8 (GE) 802.3af PoE Output+	3 (GE)	3 (GE)	3 (GE)	3 (GE)
Wi-Fi Interface	Simultaneous Dual-Band 802.11a/b/g/n AP
USB WAN Modem Port1	1	1	1	1	1
Wi-Fi Data Rates4	2x2 MIMO,  2.4GHz: 300Mbps 5GHz: 300Mbps
Core Functionality
Load Balancing & Failover
Load Balancing Algorithms	7	7	7	7	7
Inbound Load Balancing
Video Caching
Content Caching
InControl Cloud Management
Drop-In Mode
IPsec/L2TP/PPTP VPN Functionality
IPsec VPN (Network-to-Network)5
Number of IPsec Tunnels	2	50	150	50	150
L2TP VPN Server
PPTP VPN Server
Recommended PPTP VPN Users	15	100	200	100	200
AP Controller Functionality
Manage Pepwave AP Series
Maximum Number of AP Supported	50	100	250	100	250
Manage Remote AP & Multiple Config Profiles
PepVPN/SpeedFusion Functionality
PepVPN
SpeedFusion Hot Failover	^
SpeedFusion WAN Smoothing	^
SpeedFusion Bandwidth Bonding	^
Number of PepVPN/SpeedFusion Peers	2	50	300	50	300
PepVPN/SpeedFusion Throughput	50Mbps	200Mbps	400Mbps	200Mbps	400Mbps
Advanced QoS Functionality
Bandwidth Usage Monitor
QoS for VoIP and E-Commerce
User Groups Bandwidth Control
Web Blocking
Web Filtering Blacklist	Light	Full	Full	Full	Full
Hardware
Operating Temperature	32° – 104°F  0° – 40°C
Power Consumption	38W	50W	70W	50W	70W
1U Rackmount
High Availability
LAN Bypass
