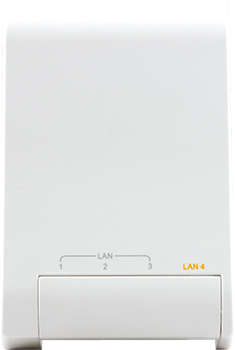

PEPWAVE AP ONE IN-WALL (PEP-APO-AGN2-IW)

4-Port Switch

Connect to all your devices, wired and wireless. Hooking up printers, TVs, and other wired devices is easy using the built-in 4-port switch and PoE output.

User Access Control

Control network access with separate logins for each user group. AP One access points support up to 16 SSIDs, each with independent bandwidth limits and web blocking.

Social Wi-Fi Hotspot
Guests can now access your Wi-Fi hotspot with their Facebook login. In exchange, you can learn more about your customer base with insightful reports.Learn more about Social Wi-Fi Hotspot >

Centralized Management

Configure AP One access points onsite or from the cloud. Our AP Controller lets you locally manage access points from your Balance router, while InControl 2 offers a complete cloud-based solution accessible from any web-browser.

Complete Network Solution

Enjoy better network integration and performance. AP One access points are a perfect complement to Balance routers, together providing blazing speed and superior reliability across your entire network.

SPECIFICATION

Model	AP One AC mini	AP One Rugged	AP One Enterprise	AP One In-Wall	AP One Flex
Basic
Ethernet Port	1x GE	2x GE	2x GE	1x FE Uplink, 4x FE	2x GE
Wi-Fi Standard	802.11ac/a/b/g/n 2x2 MIMO	802.11ac/a/n and 802.11b/g/n 3x3 MIMO	802.11ac/a/b/g/n 3x3 MIMO	802.11a/b/g/n 2x2 MIMO	802.11ac/a/n and 802.11b/g/n  2x2 MIMO
2.4GHz1	300Mbps	450Mbps	450Mbps	300Mbps	300Mbps
5GHz1	866Mbps	1300Mbps	1300Mbps	300Mbps	866Mbps
Simultaneous  2.4GHz and 5GHz
Wi-Fi Transmit Power	2.4GHz: 23dBm / 17dBm (CE) 5GHz: 17dBm	2.4GHz: 24dBm / 17dBm (CE) 5GHz: 22dBm / 17dBm (CE)	2.4GHz: 24dBm / 17dBm (CE) 5GHz: 23dBm	2.4GHz: 17dBm 5GHz: 17dBm	2.4GHz: 26dBm 5GHz: 26dBm
Coverage (With line of sight in open environments)	400ft 122m	680ft 207m	400ft 122m	400ft 122m	2000ft 609m
Recommended Concurrent Users Per Radio	60	60	60	60	60
Number of SSID Per Radio	16	16	16	16	16
Hardware
Antenna Type	Built-in Omni	External Omni	Built-in Omni	Built-in Omni	Built-In, Directional: 2.4GHz (65° Horizontal x 60° Vertical), 5GHz (70° Horizontal x 30° Vertical)
Antenna Gain	2.4GHz: 2dBi 5GHz: 4dBi	2.4GHz: 3dBi 5GHz: 5dBi	2.4GHz: 3dBi 5GHz: 4dBi	2.4GHz: 2dBi 5GHz: 4dBi	2.4GHz: 6dBi 5GHz: 9dBi
Enclosure	Plenum-rated, Indoor Plastic	Ruggedized Metal	Plenum-rated, Indoor Plastic	Plenum-rated, Indoor Plastic .  Mounts Into Standard US/EU Single Gang Wall Jack	Waterproof Outdoor IP55
Dimensions	3.9 x 3.9 x 0.8 inches 98 x 98 x 19.7 mm	5.8 x 4.6 x 1.6 inches 147 x 115 x 40 mm	6.8 (diameter) x 1.5 inches 173 x 38 mm	US: 5 x 3.4 x 2.1 inches 128 x 86 x 53.5 mm International:  3.4 x 3.4 x 2.1 inches 86 x 86 x 53 mm	10.6 x 3.3 x 1.2 inches  270 x 85 x 31 mm
Weight	0.33 pounds 150 grams	0.93 pounds 420 grams	0.57 pounds 260 grams	US: 0.37 pounds 170 grams International:  0.34 pounds 155 grams	0.89 pounds 405 grams
Operations
AC Adapter	AC Input 100V-240V DC Output 12V, 2A	AC Input 100V-240V DC Output 12V, 2A		48V DC Connector	AC Input 100V-240V DC Output 24V, 1A
110 Punch Down Block
PoE Input	802.3af	802.3af	802.3af	802.3at/802.3af	Passive PoE 24V DC, 1A
PoE Output				802.3af
Power Consumption	12W (max.)	13W (max.)	13W (max.)	15W (max.)	25W (max.)
Operating Temperature	23° - 113°F -5° - 45°C	-4° - 149°F -20° - 65°C	23° - 113°F -5° - 45°C	-4° - 104°F -20° - 40°C	-40 - 122°F -40 - 50°C
Humidity	15% - 95% (non-condensing)
Certifications	FCC, CE, RoHS
Warranty	1-Year Limited Warranty
