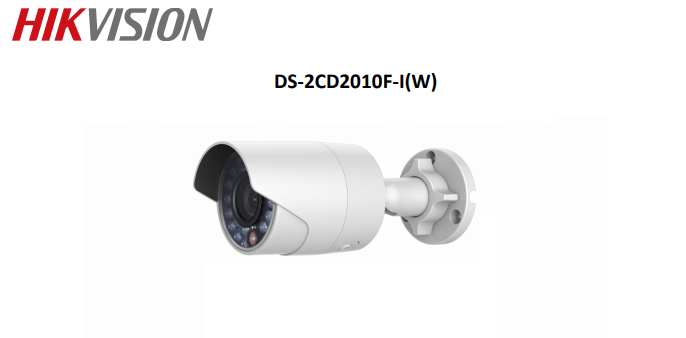

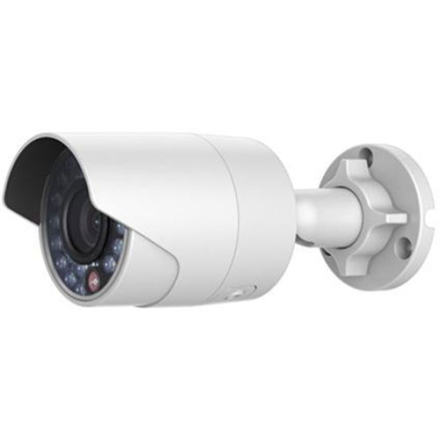

HIKVISION DS-2CD2010F-I 1.3MP IR MINI BULLET CAMERA (4MM)
รายละเอียดสินค้า
กล้องวงจรปิด ยี่ห้อ HIKVISION รุ่น DS-2CD2010F-IW
FEATURE :
- Up to 1.3 megapixel (1280 × 960) resolution
- Standard video compression with high compression ratio, ROI (region of interest) encoding
- Progressive scan CMOS, capture motion video without incised margin
- Support dual stream, and the sub-stream for mobile surveillance
- High-performance and long service life Infrared LED, Approx. 20 to 30 meters IR range
- IR cut filter with auto switch
- Built-in Micro SD / SDHC / SDXC card slot, up to 128GB
- PoE (Power over Ethernet)
- Ingress Protection level: IP66
- Electronic shutter for different surveillance environments
- Other functions: alarm, reset button, mirror, etc
- Support intrusion detection and traverse plane detection
- Support VCA, which is compatible with NVR for the second time of video searching and analysing
SPECIFICATION
|
CAMERA |
|
|---|---|
|
Image Sensor: |
1/3" Progressive Scan CMOS |
|
Min. Illumination: |
0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR 0.028Lux @ (F2.0, AGC ON) ,0 Lux with IR |
|
Shutter time: |
1/3 s to 1/100,000 s |
|
Lens: |
4mm@ F2.0, Angle of view: 73.1° (6mm optional) |
|
Lens Mount: |
M12 |
|
Day& Night: |
IR cut filter with auto switch |
|
Wide Dynamic Range: |
Digital WDR |
|
Digital noise reduction: |
3D DNR |
|
Compression Standard |
|
|
Video Compression: |
H.264/MJPEG |
|
Video bit rate: |
32Kbps~8Mbps |
|
Dual Stream: |
Yes |
|
Image |
|
|
Max. Image Resolution: |
1280x960 |
|
Frame Rate: |
50 Hz: 25 fps (1280 × 960), 25 fps (1280 x 720), 25 fps (704 x 576), 25 fps (640 x 480) 60 Hz: 30 fps (1280 × 960), 30 fps (1280 x 720), 30 fps (704 x 576), 30 fps (640 x 480) |
|
BLC: |
Yes, zone configurable |
|
ROI: |
Support |
|
Network |
|
|
Network Storage: |
NAS (Support NFS,SMB/CIFS) |
|
Alarm Trigger: |
Tampering alarm, Network disconnect , IP address conflict, Storage exception |
|
Protocols: |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
|
System Compatibility: |
ONVIF, PSIA, CGI, ISAPI |
|
Interface |
|
|
Communication Interface: |
1 RJ45 10M / 100M Ethernet interface |
|
On-board storage: |
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
|
Reset Button: |
Yes |
|
Smart Feature-set |
|
|
Line Crossing Detection: |
Cross a pre-defined virtual line |
|
Intrusion Detection: |
Enter and loiter in a pre-defined virtual region |
|
General |
|
|
Operating Conditions: |
-30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
|
Power Supply: |
12 VDC ± 10%, PoE (802.3af) |
|
Power Consumption: |
Max. 4.9 W |
|
Weather Proof: |
IP67 |
|
IR Range: |
Up to 30m |
|
Dimensions: |
70×157×62 mm (2.8” × 6.1” × 2.4”) |
|
Weight: |
500g (1.1 lbs) |
