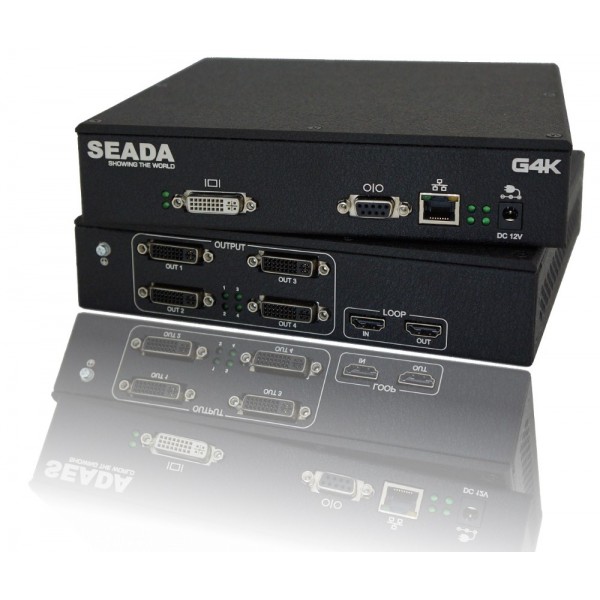

G4K FANLESS CREATIVE VIDEO WALL CONTROLLERS

 G4K controllers can be easily configured via IP connection to a Windows based PC running G4K management software. The Windows based software provides a user friendly GUI, greatly simplifying the system configuration. G4K controllers are able to run standalone without the connection to the control PC, once configured. G4K serial controllers support all popular outputs, including LCD, DLP and LED displays

FEATURES

• Fanless
• Each controller has 2 4K inputs* and 4 outputs
• Unlimited daisy chain expansion feature supports gigantic video walls, without the need for a separate distribution amplifier!
• Options for Dual-Link DVI, HDMI or DisplayPort inputs with resolutions up to 4K
• Each Output supports DVI and RGB with resolutions up to 1080p Full HD and 1920x1200 (WUXGA)
• Supports 90, 180 and 270 degree rotation on each individual output, to enable creative video walls with both landscape and portrait displays
• Output image overlapping support for edge blending projectors
• Bezel Compensation for all types of displays provides accurate display of the image
• Controllable via IP or RS-232, allowing remote configuration of the G4K controllers
• Supports arbitrary crop of the input content and upscale or downscale of cropped part independently for each output
• Low power consumption
• Programmable Input EDID provides customized input resolution and frame rate
• Output frame lock ability ensures seamless display between screens
• User friendly GUI on Windows based PC provides simple and easy configuration

*Not simultaneously
