DDW-VPH0808 Video Wall Controller 8x8
| หมวดหมู่ | HD Video wall Controller |
| ราคา | 180,000.00 บาท |
| รุ่น | DDW-VPH0808 |
| สถานะสินค้า | พร้อมส่ง |
| ลงสินค้า | 11 พ.ค. 2561 |
| อัพเดทล่าสุด | 11 พ.ค. 2561 |
| คงเหลือ | ไม่จำกัด |
| จำนวน | pcs |
รายละเอียดสินค้า

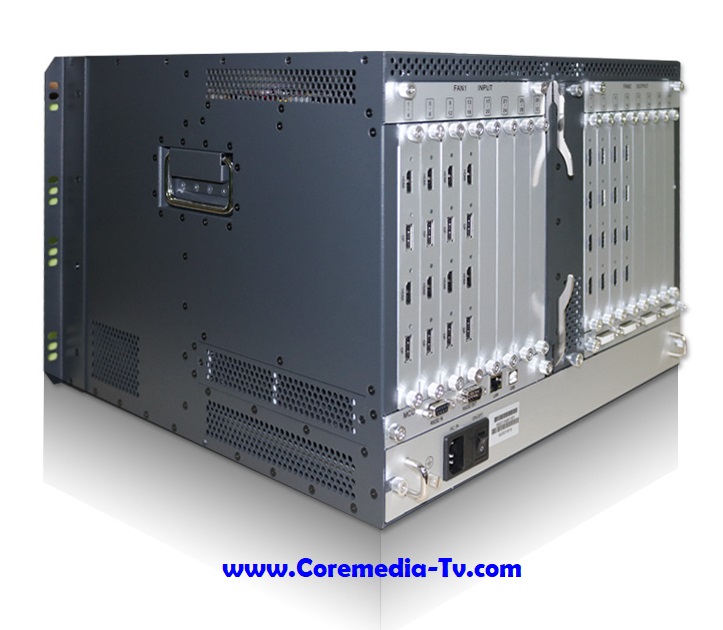

3.5U Chassis HDMI video wall controller, max support 8 input and 8 output, signal support HDMI DVI AV,YPBPR,IP,4K input and output. Support iOS APP Android APK mobile Pad remote control,best for high end control room center.
Key Highlights
- Uncompromising color accuracy and brightness uniformity through precise calibration and superb panel technology
- Ultra-narrow bezel (8mm) and FHD resolution for virtually seamless, life-like viewing experience
- DVI/HDMI/Display Port (DP) Daisy Chain for improved device connectivity and simplified content management
- Highly reliable displays designed for 24/7 operation, with simple, easy-to-use special wall mount included
|
Professional video wall controller Technical Specifications |
||
|
Model series |
With CBD |
No CBD |
|
Function description |
4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image |
16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays |
|
Input signal(optional) |
HDMI/DVI/VGA/AV/YPbPr |
|
|
Input resolution |
1024x768~1080p,commonly used resolutions |
|
|
Output signal format |
DVI/VGA/AV/YPbPr/HDMI(DVI-HDMI converter) |
|
|
Output resolution |
Up to 1920*1200/60HZ |
|
|
System control software |
Special control software |
|
|
Power Supply |
Redundant power supply 110-220VAC, 50/60Hz |
|
|
Consumption |
12W/channel |
|
|
Working temperature |
-20°C——60°C |
|
|
Working Humidity |
5-95% |
|
|
Case specification |
4U/6U/10U/15U standard rackmount chassis |
|
|
Serial Control Interface |
RS-232,9-pin female, Type-D |
|
|
Baud Rate |
115200 |
|
|
Pin configuration |
2=TX,3=RX,5=GND |
|
|
Ethernet control interface |
RJ-45 female, TCP/IP |
|
|
Ethernet control speed |
Auto 10M or 100M,Full-duplex or half-duplex |
|
|
Working time |
365*7*24hrs |
|
|
Technical specification of input/output connectors |
||
|
VGA/RGB input |
Input: 15pin HD D-Sub, female |
|
|
|
Sync mode: HV independent sync |
|
|
|
Color Depth: 32bit/pixel |
|
|
|
Resolution: 640*480/60HZ—1920*1200/60HZ |
|
|
|
Input impedance :75Ω |
|
|
Video input |
Input connector: BNC |
|
|
|
Detecting: full-format auto detecting |
|
|
|
Input impedance :75Ω |
|
|
VGA or DVI output |
Resolution:1024*768/60HZ-1920*1200/60HZ |
|
|
|
Color depth: 32bit/pixel |
|
|
|
Output impedance:75Ω |
|
|
Physical properties of input/output connectors |
||
|
Signals |
Connectors |
Type |
|
Composite VIDEO input |
BNC |
female |
|
VGA input |
15 pin HD D-Sub |
female |
|
VGA output |
15 pin HD D-Sub |
female |
|
DVI output |
24+5 or 24+1 standard |
female |
|
AUX RS-232 |
9-pin D-Sub |
female |
|
Main RS-232 |
9-pin D-Sub |
female |
|
Professional video wall controller can be widely used for: monitoring, directing, scheduling system, public security, fire, military, weather, rail, and aviation monitoring system, video conferencing, query systems. |
||
