Lumens VS-LC102 Lecture Capture System
| หมวดหมู่ | Lecture Capture System |
| ราคา | 0.00 บาท |
| ยี่ห้อ | Lumens |
| รุ่น | VS-LC102 |
| สถานะสินค้า | พร้อมส่ง |
| ลงสินค้า | 25 พ.ค. 2561 |
| อัพเดทล่าสุด | 25 พ.ค. 2561 |
| คงเหลือ | ไม่จำกัด |
| จำนวน | pcs |
รายละเอียดสินค้า

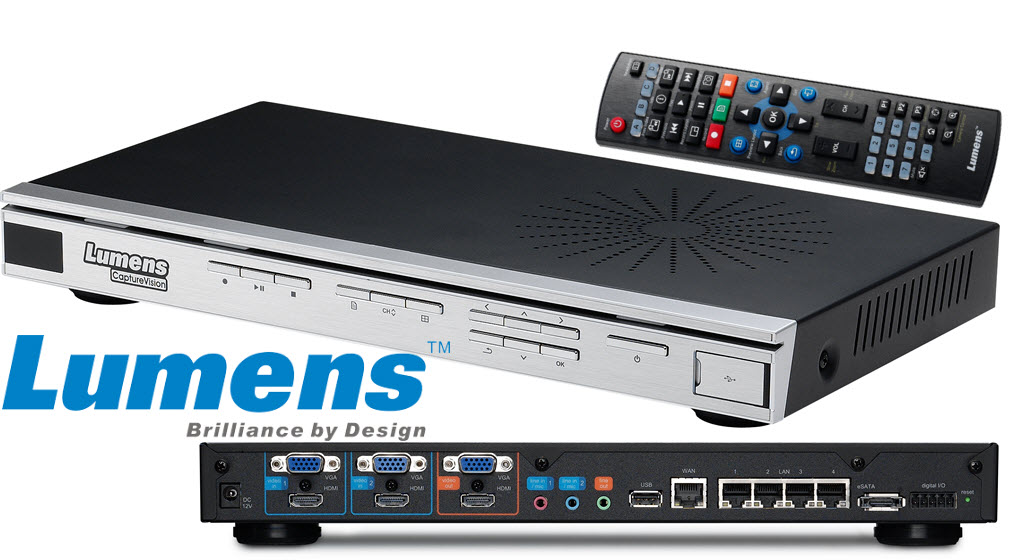

Designed as a lecture capture device, the VS-LC102 CaptureVision Station from Lumens allows for multiple input signals to be recorded into a single file with audio. It is well-suited for use in a lecture hall, where it can be used to record the outputs from a camera, document camera, laptop, and other devices. Nine layouts allow you to arrange your input sources in a wide variety of combinations. The CaptureVision Station streams via Ethernet, supports HTML 5 for viewing the content on virtually any device with a web browser. The unit features front panel Hot Keys (buttons), and a web based GUI for set up and control. You can also manage the system via the included remote control.
Features
- Supports up to Four Input Sources Concurrently, with Full HD
- Graphical User Interface Allows Ease of Use
- Easy Installation
- Ability to Produce Microfilm Instantly, without Post-Production
- Distance Learning
- Backup Recorded Video Instantly
- Built-in 1TB Hard Drive
SPECIFICATION
|
Video Inputs* |
HDMI/ VGA/ RJ-45 |
|
Max. Video-In Channels
|
Maximum 4 channel synchronized recording |
| HDMI/ VGA/:2 channels Full HD network camera:4 channels |
|
|
Video-In Modes |
HDMI: 480i~1080p/60fps |
|
Audio Inputs |
Line in, Mic |
|
Max. Audio-In Channels |
3.5mm Stereo: 2 channels |
|
Video Processing-Compression |
H.264/ AVC |
|
Frame Rate |
Max. 30fps |
|
Video Processing-Bit Rate |
64Kbps~24Mbps |
|
Resolution |
Max. 1080p |
|
Audio Processing-Compression |
AAC-LC |
|
Audio Processing-Bit Rate |
32Kbps~512Kbps |
|
External Storage |
USB / eSATA |
|
Internal Storage |
Built-in 1TB hard disk (Only for VS-LC102) |
|
Locally Stored File Output Format |
MP4 |
|
Support Format |
Output : RTP, RTMP |
|
Streaming Format |
Output : RTP, RTMP |
|
Main Output Mode (Max.) |
HDMI / VGA : 1080p/60fps |
|
Display Layout |
Full screen/ picture-in-picture/ |
|
Recording Layout |
Multi-View streaming, up to nine layouts |
|
Index (keyword tagging) |
Automatic and manual index insertion |
|
Auto Logo Insertion |
Yes, through web-based back stage management setting |
|
Share live streaming from CaptureVision Station |
Yes, Multicast |
|
Webcasting |
Support Youtube Live, UStreaming, Adobe Media server |
|
Local File Playback |
Yes |
|
Select by Index |
Yes, browse playable content through knowledge point index |
|
View course content on any device |
Yes |
|
Post Lecture Editing |
Yes, through web-based back stage |
|
Post Index Points Editing |
Yes, through web-based back stage to add and delete index points |
|
Auto Logo Title and Ending Insertion |
Yes, through web-based back stage to insert logo title and endings when exporting lecture video |
| Remote Control | Yes, included with purchase |
| External Control | Yes, supports RS-232 interface port |
| Power Supply | 12V/ 2A |
| Temperature / Humidity | 0~45°C / 90% |
| Dimensions | 354mm(L) x 187.96mm(W) x 45.97mm(H) 13.94 inch(L) x 7.4 inch (W) x1.8 inch (H) |
| Weight | 1.33 kg （ 2.93 lbs） |
| Station Control | Web-based back stage |
| Language | English / Simpli ed Chinese / Traditional Chinese |
| Accessories | Remote control / power adapter / quick guide |
* Supports DVI and component video cable inputs when using appropriate DVI to HDMI or component to VGA adaptors
