LKV393 HDbitT HDMI Extender -Coremedia tv

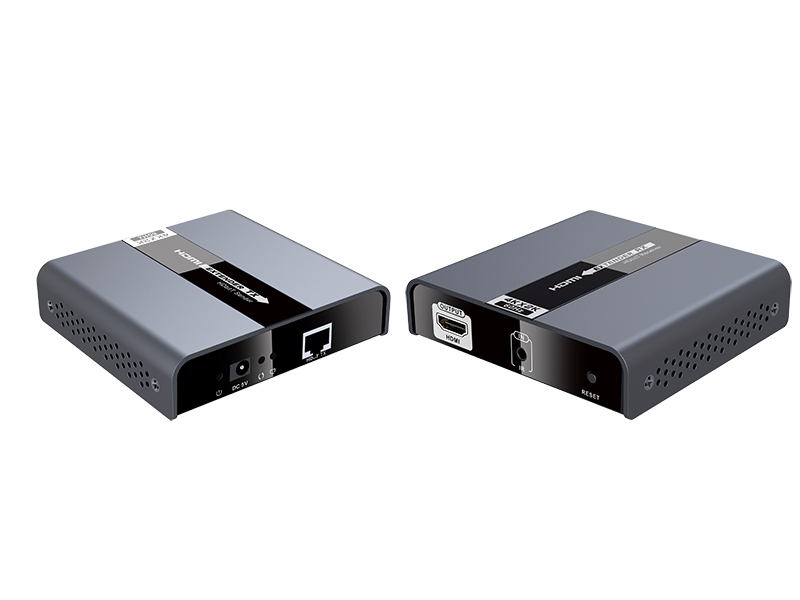

LKV393 HDbitT HDMI  extender includes a transmitter unit(TX) and a receiver unit(RX). It applied advanced HDbitT technology, the resolution supported is up to 4Kx2K@60Hz ultra HD. It supports one to one and one to many connections, the transmission distance is up to 120 meters. With IR passback function, it is very easy to control media playback of the signal source device at the display location.

Features

1.  HDMI 2.0 and HDCP2.2 compliant

2.  Extend HDMI signal over a single CAT5/6

3.  Resolution supported is up to 4Kx2K@60Hz ultra HD

4.  Support one to one and one to many configuration

5.  Interconnect with other HDbitT VGA/SDI/DVI transmitter via CAT5/6

6.  Long transmission distance up to 120 meters (high quality CAT6 can up to 150m)

7.  IR passback with 20-60KHz wide frequency to control source device from receiver side easily

 Connections

1.One to one connection: up to 120 meters transmission distance over single CAT6 (High quality cable can reach 150 meters) .

2.One-to-many Connection: by using network router/switch，one sender to several receivers, realize extender and splitter function.
