PTZOptics 30X Optical Zoom, Ndihx, 3G-Sdi, Hdmi, Cvbs, Ip Streaming 1920 X 1080P Support vMix
| หมวดหมู่ | PTZ Camera |
| ราคา | 109,000.00 บาท |
| ยี่ห้อ | PT30X-NDI-GY |
| รุ่น | PTZ Optics |
| สถานะสินค้า | พร้อมส่ง |
| ลงสินค้า | 5 มิ.ย. 2562 |
| อัพเดทล่าสุด | 29 มิ.ย. 2562 |
| คงเหลือ | ไม่จำกัด |
| จำนวน | ชิ้น |
รายละเอียดสินค้า

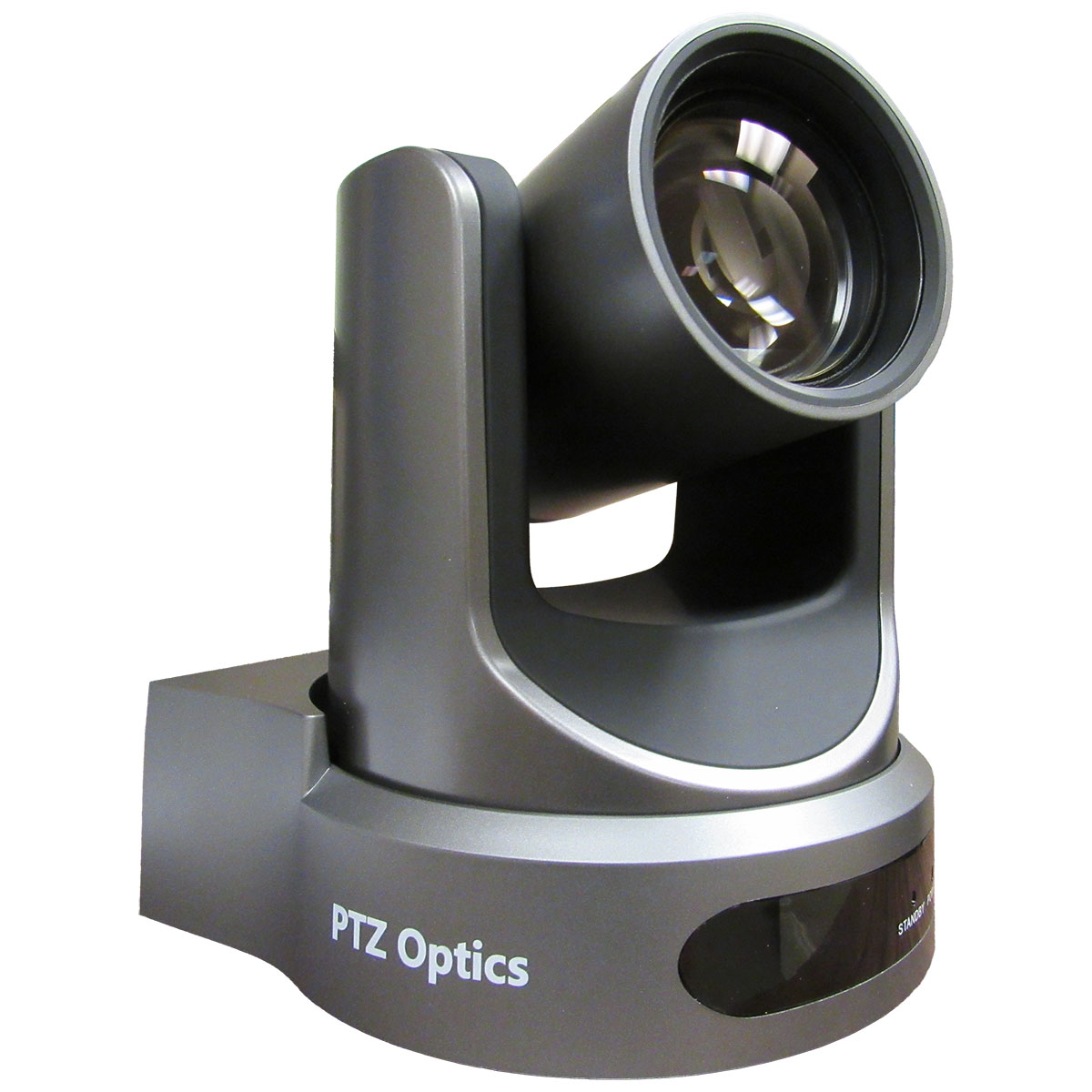

PTZ Optics 30X-NDI is a 1080p camera with 30X optical zoom for capturing HD video at long distances. With support for HDMI, 3G-SDI and IP Streaming (H.264 & H.265) this camera is ideal for broadcasting high definition video signals for broadcast or video conferencing applications.
Features
- Video Connections: HDMI, 3G-SDI & IP Streaming
- Field of View: 60.7 degree wide-angle lens
- Low Lux: High performance in low illumination situations
- Resolution: Full 1920x1080p HD Resolutions up to 60 frames per second
- Noise Cancellation: 2D and 3D noise reduction with our latest “low noise CMOS sensor”
- IP Streaming GUI: Easy to use Software GUI for PTZ Control and remote viewing
Be seen in 1080p
Crystal clear High Definition 1080p video with lossless 12X optical zoom letting you get up close to see and interact with your team.
Three Simultaneous Video Outputs
The PTZOptics 12X-SDI can simultaneously send out 1080p video from HDMI, 3G-SDI and h.264 or H.265 IP Streaming for maximum flexibility.
3G-SDI Connectivity
3G-SDI is a preferred cabling for 1080p video over long distances.
Wide Field of View
The 12X PTZOptics models offer a wide field of view with the ability to zoom into narrow a 6.9 degrees.
RS-232/RS-485 Camera Control
Every PTZOptics includes in/out RS-232 ports and a RS-485. These ports use VISCA commands to integrate with larger control systems such as Crestron and Extron. We even have pre-built modules available fordownload here.
HDMI Video Connection
Every PTZOptics camera comes with a HDMI video output capable of video resolutions up to 1080p.
IP Video Streaming
Camera include h.265 “High Efficiency Codec” IP Streaming along with h.264 and multicast streaming. Taking things a step further we offer our software open source so developers can customize any experience.
3 Year Warranty
PTZOptics offers the industries best 3 Year Warranty. Repairs are handled in our USA repair center located outside Philadelphia, PA.
Network Control
- Easily connect to up to 8 cameras on your internal network
- No need to be physically connected to your cameras
- Extend control outside your network
- Use preset visualizer to layout your presets
- Toggle between static IP addresses on your network
Technical Specifications
- Video CMOS Sensor 1/2.7” CMOS, 2.07 Mega Pixels
- Frame Rate 1080p 60/50/30/25, 1080i 60/50/30/25, 720p 60/50/30/25
- Lens 20x, F3.5mm-42.3mm, F1.8-F2.8
- Lens Zoom 12x, 16x Digital Zoom
- Field of View 72.5°
- Min Lux 0.5 Lux at F1.8, AGC ON
- Shutter Speed 1/30s – 1/10000s
- SNR ≥55dB
- Vertical Flip & Mirror Supported
- Horizontal Angle of View 72.5° – 6.9°
- Vertical Angle of View 44.8° – 3.9°
- Pan Movement ±170°
- Tilt Rotation -30°- +90°
- Presets 245 Presets
- Video Output Interface HDMI, 3G-SDI, IP Streaming, CVBS
- Network Interface RJ45
- Audio Interface Line In, 3.5mm
- Communication Interface: RS-232, RS485
- Baud Rate: 2400/4800/96000 bits
- Power Supply Interface: JEITA type Power Adapter (DC IN 12V)
- USB Interface: USB 2.0 (for firmware updates only)
- Dimension inches: 5”W x 6.5”H x 6.63”D (8.6“ Height Extended)
- Dimensions millimeters: 127 W x 167 H x 168 D (204 Height Ext)
- Box Dimensions: 9” x 9” x 10” | 228mm x 254mm x 228mm
- Camera Weight: 3.25 lbs. (1.47 kg)
- Boxed Weight: 5.4 lbs. (2.45 kg)
- Power Supply: 8W
- Input Voltage: 12V DC (10.8 – 13.0V DC)
